Precision Valve Pin Hot Runner with DLC Coating and 0.005mm Tolerance

Precise Flow Control and Superior Gate Quality

The China hot runner system valve pin series delivers exact control over plastic flow during injection molding, ensuring consistent gate quality. Designed specifically to eliminate gate vestige and drool, these valve pins enable flawless part finishes in sequential valve gating processes. By precisely regulating the melt through the hot runner nozzle tip, the valve pins minimize defects, reduce waste, and enhance overall mold performance.

Built for demanding applications, these valve pins offer prolonged service life in abrasive environments, such as molding glass fiber reinforced plastics. The robust construction maintains dimensional stability and sealing integrity, even under high thermal and mechanical stress. This durability translates into lower downtime and improved productivity in large-scale industrial production.

Engineering Specifications and Material Science of Valve Pin Hot Runner

When it comes to valve pin hot runner quality, materials and precision are key. The base materials chosen ensure strength and durability in demanding injection molding conditions.

Base Materials:

High-Speed Steel (HSS) – Popular for toughness and heat resistance.
M2 Steel – A high-quality HSS variant, offering superior wear resistance.
Powder Metallurgy (PM) Steels – Provide excellent core toughness, ideal for abrasive plastics like glass fiber reinforced materials.

Surface Treatments & Coatings greatly improve lifespan and performance by reducing friction and wear:

Coating Type
Benefits

Diamond-Like Carbon (DLC)
Ultra-hard, low friction, resists wear

Titanium Nitride (TiN)
Enhances surface hardness and corrosion resistance

Chrome Plating
Cost-effective, protects against corrosion and deformation

Hardness:

Valve pins commonly reach 58-62 HRC or higher, preventing tip deformation under repeated high temperatures and pressures. This is essential to maintain the integrity of the valve gate stem and ensure shut-off pin effectiveness.

Dimensional Tolerance:

Critical for sealing and smooth operation, valve pins undergo precision grinding to maintain a tolerance of ±0.005mm. This tight tolerance guarantees a flawless fit at the gate orifice, eliminating gate leakage and optimizing injection molding flow control.

Our valve pins meet these strict engineering specs, balancing toughness and precision. This foundation supports advanced designs like tapered shut-off needles and DLC coated pin models for demanding applications.

For more on valve pin designs and hot runner nozzle tips, check the detailed explanations on hot runner gate types and nozzle tips.

Valve Pin Design Configurations for Precise Injection Molding

Valve pins come in several designs tailored to specific molding needs, ensuring top-notch flow control and gate quality in hot runner systems.

• Tapered Tip Pins

  These are crafted for a tight, positive shut-off that prevents any leakage. Their precise taper helps achieve invisible gate marks or vestige elimination, producing flawless surface finishes on your molded parts. This design is essential for applications where cosmetic quality is a must.

• Cylindrical Pins

  Ideal for high-flow molding applications, cylindrical valve pins reduce stress on the mold steel by providing a consistent, even flow path. They are perfect when you need reliable plastic flow without compromising mold longevity. This style often pairs well with pneumatic valve gates in continuous production runs.

• Profiled/Contoured Tips

  Customized to fit the internal surfaces of specific parts, these pins allow for intricate molding where standard shapes fall short. Their tailored profiles optimize flow and gate sealing in complex geometries, common in automotive lenses and medical device molds.

Choosing the right valve pin design helps maintain cycle time efficiency and ensures quality output. Our hot runner system valve pins support diverse molding requirements, whether it’s for sequential valve gating or cascade injection molding.

For further details on nozzle design and valve gate stem compatibility, check our detailed insights on hot runner system nozzle design and explore how precision ground valve stems amplify overall performance.

Operational Advantages in Injection Molding

Using the valve pin hot runner system offers clear benefits during injection molding. First, it ensures cosmetic perfection by eliminating stringing and gate vestige (drool), resulting in smooth, Class A surfaces that require little to no post-processing. This is especially important for visible parts where appearance matters.

Second, these valve pins contribute to cycle time reduction. By enabling faster gate freezing, the molding cycle shortens, boosting production efficiency without compromising part quality.

Lastly, the system supports sequential gating (cascade molding), which is crucial for controlling weld line placement on large automotive parts. This controlled injection flow ensures structural integrity and better surface finish on complex components.

For more on enhancing flow control and molding precision, check our detailed resources on hot runner mold technology.

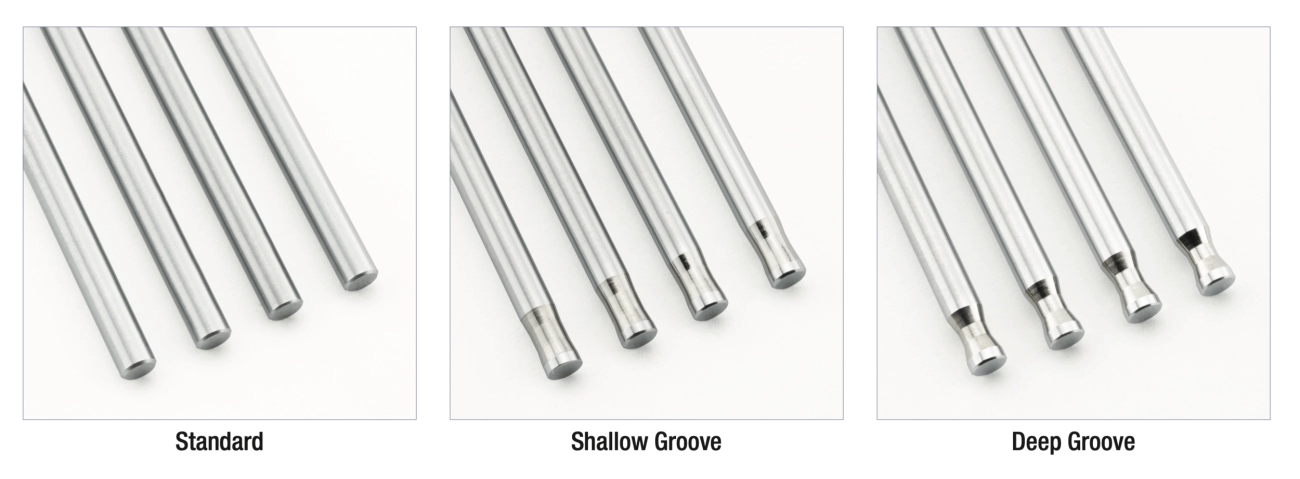

Compatibility and Custom Manufacturing

Our valve pin hot runner components are designed to seamlessly fit both pneumatic and hydraulic cylinder valve gate systems, ensuring smooth integration with your existing hot runner setups. This versatility makes them an ideal choice for a range of injection molding applications where precise flow control is critical.

We offer custom manufacturing services tailored to your specific needs. Whether you require reverse engineering from existing parts or need new designs based on CAD/DWG files, our team can deliver valve gate stems and shut-off pins with adjustable lengths and precise dimensions. This flexibility helps optimize performance, improve valve bushing compatibility, and cater to unique mold designs, including special profiles and tapered shut-off needles.

Explore more about our advanced manufacturing and system solutions at our detailed hot runner system providers page for comprehensive information on customization options and compatibility.

Maintenance and Troubleshooting in Valve Pin Hot Runner Systems

Proper maintenance is key to keeping your valve pin hot runner system running smoothly and avoiding costly downtime. Here’s how to tackle the most common issues:

• Solving Pin Seizure: A frequent cause of valve pin sticking is poor surface finish. Using DLC coated pins or titanium nitride (TiN) treatments can significantly reduce friction and prevent the valve gate stem from seizing inside the bushing. Regular cleaning to remove residue also helps maintain smooth movement.
• Preventing Gate Leakage: Ensuring precision ground valve stems with tight dimensional tolerances (+/- 0.005mm) is essential for a perfect pin-to-gate fit. This stops plastic melt from leaking around the valve pin and eliminates gate vestige on your parts.
• Wear Management: Keep an eye out for signs that the valve pin needs replacing, such as visible tip deformation, loss of hardness, or changes in cycle performance. In abrasive environments like glass fiber reinforced plastics, pins made from M2 high speed steel or powder metallurgy steels tend to last longer, but wear is inevitable over time.

Regular inspection combined with timely surface treatment renewal and custom tuning can extend service life and maintain injection molding quality. For tailored maintenance advice or replacement parts, consulting with experienced engineers familiar with hot runner nozzle tips and valve gate assemblies ensures your system stays in top shape.

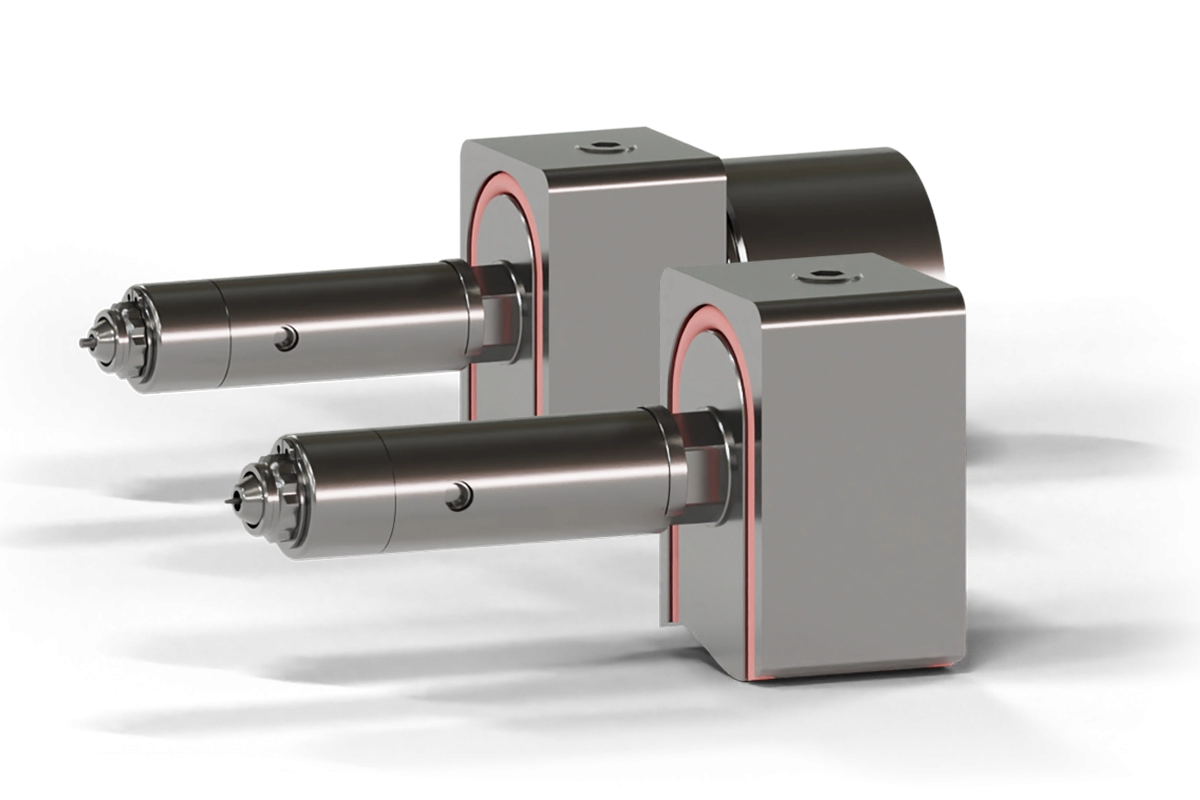

Industries Served

Our valve pin hot runner solutions are trusted across several key industries where precision and reliability matter most:

• Automotive: Used extensively for manufacturing lenses and interior trim parts, where exact injection molding flow control and gate vestige elimination ensure flawless surfaces and structural integrity.
• Medical: Critical in producing syringes and optical clarity parts, these valve pins maintain strict quality standards through precise sequential valve gating and minimal drool, essential for medical-grade plastics.
• Packaging: Ideal for thin-wall containers, caps, and closures, offering consistent gate sealing and reduced cycle times. This is especially important for fast, high-volume production runs requiring long service life and reduced wear.

By fitting pneumatic valve gate systems and featuring durability against abrasive materials like glass fiber reinforced plastics, our hot runner valve pins are designed to meet the demanding performance required in these sectors. For more detail on compatible components, check out our range of hot runner spare parts designed for seamless integration.

Request a Technical Consultation or Quote

Looking to optimize your valve pin hot runner setup? Our China hot runner system engineers are ready to assist with expert advice on material selection, surface coatings, and pin design to suit your injection molding needs. Whether you need guidance on choosing the right M2 high speed steel pin or want a custom solution for your pneumatic or hydraulic valve gate system, we provide tailored support to help extend tool life and improve flow control.

How to Connect with Us

Contacting our specialists means you get not just a precision ground valve stem, but a system designed for efficiency, durability, and performance. For pricing or detailed technical support, reach out today and improve your process with the right valve pin solution.

For more on system integration and maintenance, check our resources on hot runner control and hot runner cleaning.
